Item Description
Snap-in reflector insert is field changeable and fits into 8? Quartz round downlight with included clips for an alternative appearance. Finish: Clear Diffused Compatible Luminaire: NQZ2-81TWTW-MPW

• Item ID: 17P2K5
• Width: 7.75
• Height: 2.50
• Finish: Diffused Clear
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 0
• Length: 7.75
• Ship Carton Height: 3
• Ship Carton Length: 8
• Ship Carton Width: 8
• Weight: .6
• .4
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 18
• Master Box L: 31
• Master Box Qty: 40
• Master Box W: 18
• Master Box Wt.: 26
• Product Family: Quartz
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Trims
• Standard Finish: Clear
• Standard Style: Traditional

Item Description
4" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation. Rating: IC Input Voltage: 120-277VAC Lumens / Wattage: Selectable Lumens (800lm / 7W; 950lm / 9W; 1250lm / 12W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Dimming: 0-10V Finish: Matte Powder White Accessories: New construction frame-in (NQZ-4R-F) or Reflector inserts (NQZ-41REFL) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations

• Item ID: 1J44JQ
• Width: 5.75
• Height: 4.50
• Finish: Matte Powder White
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 2
• Length: 5.75
• Lumens / Light Output: Selectable Lumens (800lm / 950lm / 1250lm)
• Ship Carton Height: 5
• Ship Carton Length: 7.875
• Ship Carton Width: 7.875
• Weight: 1.3
• 1.65
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• CEC Database: Y
• CEC Item Number: NQZ2-41TWTW-***
• CEC Substitute Item: NQZ2-61TWTW-MPW
• Contains Battery: N
• Country of Origin: CHN
• CRI: 90
• DLC Listed: No
• Master Box H: 12
• Master Box L: 17
• Master Box Qty: 8
• Master Box W: 17
• Master Box Wt.: 15
• Product Family: Quartz
• Safety Listing: cETLus
• Wattage: Selectable Wattage (7W / 9W / 12W)
• Standard Category: Recessed Ltg.
• Standard Subcategory: Other Recessed Ltg.
• Standard Option: Energy Star, Title 24

Item Description
6" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation. Rating: IC Input Voltage: 120-277VAC Lumens / Wattage: Selectable Lumens (1350lm / 12W; 1850lm / 16W; 2200lm / 20W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Dimming: 0-10V Finish: Matte Powder White Accessories: New construction frame-in (NQZ-6R-F) or Reflector inserts (NQZ-61REFL) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations

• Item ID: 1J44JR
• Width: 7.50
• Height: 4.63
• Finish: Matte Powder White
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 3
• Length: 7.5
• Lumens / Light Output: Selectable Lumens (1350lm / 1850lm / 2200lm)
• Ship Carton Height: 5.25
• Ship Carton Length: 9.375
• Ship Carton Width: 9.5
• Weight: 1.65
• 2.15
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• CEC Database: Y
• CEC Item Number: NQZ2-61TWTW-***
• CEC Substitute Item: NQZ2-66TWTW-MPW
• Contains Battery: N
• Country of Origin: CHN
• CRI: 90
• DLC Listed: No
• Master Box H: 12
• Master Box L: 21
• Master Box Qty: 8
• Master Box W: 21
• Master Box Wt.: 20
• Product Family: Quartz
• Safety Listing: cETLus
• Wattage: Selectable Wattage (12W / 16W / 20W)
• Standard Category: Recessed Ltg.
• Standard Subcategory: Other Recessed Ltg.
• Standard Option: Energy Star, Title 24

Item Description
8" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation. Rating: IC Input Voltage: 120-277VAC Lumens / Wattage: Selectable Lumens (1650lm / 15W; 2200lm / 20W; 2700lm / 25W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Dimming: 0-10V Finish: Matte Powder White Accessories: Oversize Ring (NQZ-8OR-MPW), New construction frame-in (NQZ-8R-F) or Reflector inserts (NQZ-81REFL) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations

• Item ID: 1J44JT
• Width: 9.75
• Height: 5.50
• Finish: Matte Powder White
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 4
• Length: 9.75
• Lumens / Light Output: Selectable Lumens (1650lm / 2200lm / 2700lm)
• Ship Carton Height: 6
• Ship Carton Length: 11.75
• Ship Carton Width: 11.75
• Weight: 2
• 2.75
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• CEC Database: Y
• CEC Item Number: NQZ2-81TWTW-***
• CEC Substitute Item: NQZ2-86TWTW-MPW
• Contains Battery: N
• Country of Origin: CHN
• CRI: 90
• DLC Listed: No
• Master Box H: 14
• Master Box L: 25
• Master Box Qty: 8
• Master Box W: 25
• Master Box Wt.: 26
• Product Family: Quartz
• Safety Listing: cETLus
• Wattage: Selectable Wattage (15W / 20W / 25W)
• Standard Category: Recessed Ltg.
• Standard Subcategory: Other Recessed Ltg.
• Standard Option: Energy Star, Title 24

Item Description
Snap-in reflector insert is field changeable and fits into 6? Quartz round downlight with included clips for an alternative appearance. Finish: Clear Diffused Compatible Luminaire: NQZ2-61TWTW-MPW

• Item ID: 17P2K1
• Width: 6.13
• Height: 2.00
• Finish: Diffused Clear
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 0
• Length: 6.125
• Ship Carton Height: 2.25
• Ship Carton Length: 6.125
• Ship Carton Width: 6.5
• Weight: .38
• .3
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 14
• Master Box L: 22
• Master Box Qty: 40
• Master Box W: 14
• Master Box Wt.: 16
• Product Family: Quartz
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Trims
• Standard Finish: Clear
• Standard Style: Traditional

Item Description
8" Oversize ring covers ceiling cut-outs up to 10". Finish: Matte Powder White Compatible Luminaire: NQZ2-81TWTW-MPW

• Item ID: 17P2K8
• Width:
• Height:
• Finish: Matte Powder White
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 0
• Ship Carton Height: 12
• Ship Carton Length: 11
• Ship Carton Width: 1
• Weight: .55
• .8
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 13
• Master Box L: 18
• Master Box Qty: 24
• Master Box W: 13
• Master Box Wt.: 21
• Product Family: Quartz
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories
• Standard Finish: White
• Standard Style: Traditional

Item Description
6" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation. Rating: IC Input Voltage: 120-277VAC Lumens / Wattage: Selectable Lumens (1300lm / 12W; 1750lm / 16W; 2150lm / 20W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Dimming: 0-10V Finish: Matte Powder White Accessories: New construction frame-in (NQZ-6S-F) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations

• Item ID: 1JE7JA
• Width: 7.63
• Height: 4.63
• Finish: Matte Powder White
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 4
• Length: 8
• Lumens / Light Output: Selectable Lumens (1300lm / 1750lm / 2150lm)
• Ship Carton Height: 5.375
• Ship Carton Length: 8.5
• Ship Carton Width: 8.25
• Weight: 2
• 2.4
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• CEC Database: Y
• CEC Item Number: NQZ2-66TWTW-***
• CEC Substitute Item: NQZ2-61TWTW-MPW
• Contains Battery: N
• Country of Origin: CHN
• CRI: 90
• DLC Listed: No
• Master Box H: 12
• Master Box L: 18
• Master Box Qty: 8
• Master Box W: 18
• Master Box Wt.: 21
• Product Family: Quartz
• Safety Listing: cETLus
• Wattage: Selectable Wattage (12W / 16W / 20W)
• Standard Category: Recessed Ltg.
• Standard Subcategory: Other Recessed Ltg.
• Standard Option: Title 24

Item Description

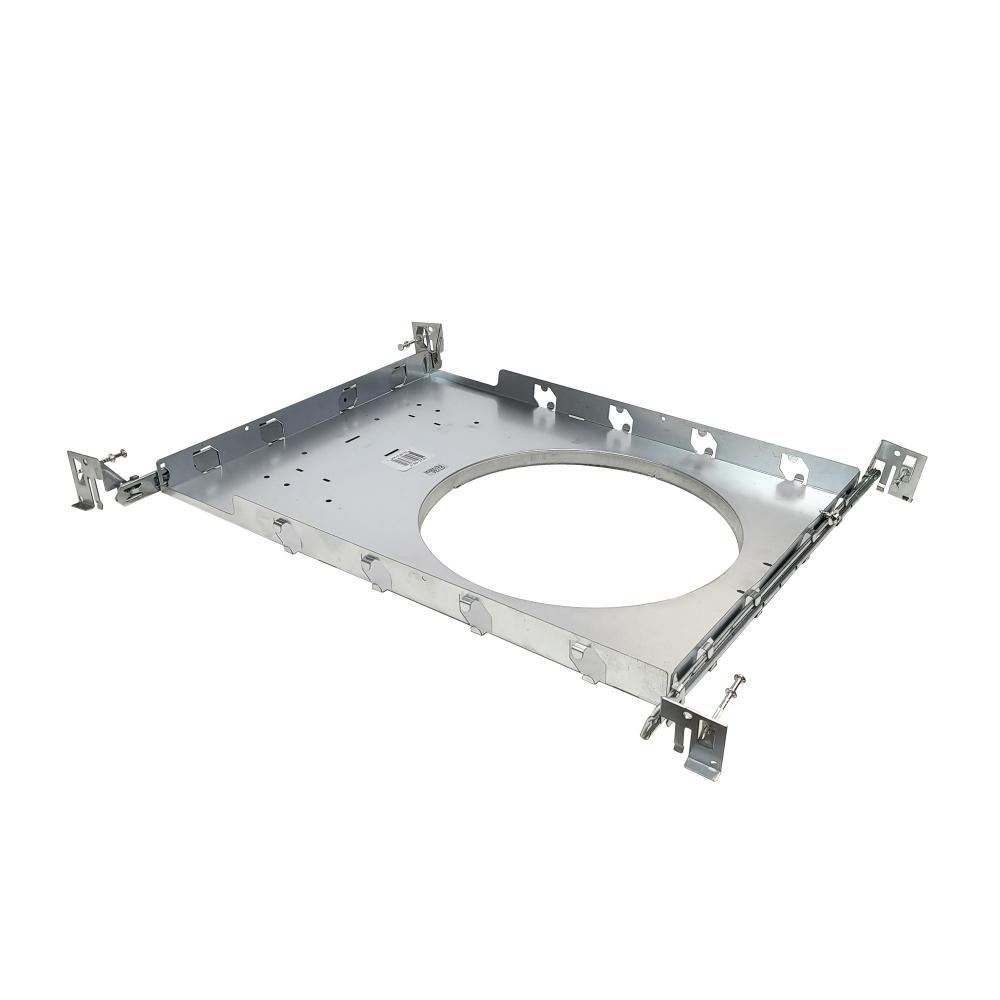

A new construction frame-in with a collar to assist in installing 8" can-less downlights. Compatible Luminaire: NQZ2-86TWTW-MPW

• Item ID: 1JE7J9
• Width: 16.88
• Height: 1.50
• Finish: Unfinished
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 0
• Length: 15.5
• Weight: 2.1
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 16
• Master Box L: 25
• Master Box Qty: 12
• Master Box W: 20
• Master Box Wt.: 28
• Product Family: Quartz
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
8" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation. Rating: IC Input Voltage: 120-277VAC Lumens / Wattage: Selectable Lumens (2050lm / 18W; 2450lm / 22W; 2900lm / 26W; 3300lm / 30W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Dimming: 0-10V Finish: Matte Powder White Accessories: New construction frame-in (NQZ-8S-F) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations

• Item ID: 1JE7JC
• Width: 9.38
• Height: 6.50
• Finish: Matte Powder White
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 5
• Length: 9.875
• Lumens / Light Output: Selectable Lumens (2050lm / 2450lm / 2900lm / 3300lm)
• Ship Carton Height: 7.125
• Ship Carton Length: 1.25
• Ship Carton Width: 9.875
• Weight: 3
• 3.4
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• CEC Database: Y
• CEC Item Number: NQZ2-86TWTW-***
• CEC Substitute Item: NQZ2-81TWTW-MPW
• Contains Battery: N
• Country of Origin: CHN
• CRI: 90
• DLC Listed: No
• Master Box H: 16
• Master Box L: 22
• Master Box Qty: 8
• Master Box W: 21
• Master Box Wt.: 31
• Product Family: Quartz
• Safety Listing: cETLus
• Wattage: Selectable Wattage (18W / 22W / 26W / 30W)
• Standard Category: Recessed Ltg.
• Standard Subcategory: Other Recessed Ltg.
• Standard Option: Title 24

Item Description
Snap-in reflector insert is field changeable and fits into 4? Quartz round downlight with included clips for an alternative appearance. Finish: Haze Compatible Luminaire: NQZ2-41TWTW-MPW

• Item ID: 17P2JX
• Width: 4.38
• Height: 1.75
• Finish: Haze
• Category: Recessed
• Product Line: LE80
• Est. Shipping Wt.: 0
• Length: 4.375
• Ship Carton Height: 2
• Ship Carton Length: 5
• Ship Carton Width: 5
• Weight: .2
• .2
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 11
• Master Box L: 21
• Master Box Qty: 40
• Master Box W: 11
• Master Box Wt.: 9
• Product Family: Quartz
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Trims
• Standard Finish: Gray
• Standard Style: Traditional
